Description: · Applicable in FTTH project · Suitable for corridor,basement,room and building's outer walls application · With the function of mechanical splice,fusion splice,light splitting,wiring distributions Features: · Industry Standard User Interface, be made of high impact plastic. · Can accommodate 1x8 & 1X16 PLC splitter. · Anti-UV, Ultra violet resistant and rainfall resistant. · Up to 16 FTTH drops. · Wall and pole mountable. · 2 inlet ports, 16 outlet ports.
Application:
· widely used in FTTH access network.
· Telecommunication Networks
· CATV Networks
· Data communications Networks
· Local Area Networks
|
Items |
Dimension(WxDxH) |
Max.Capacity |
Note |

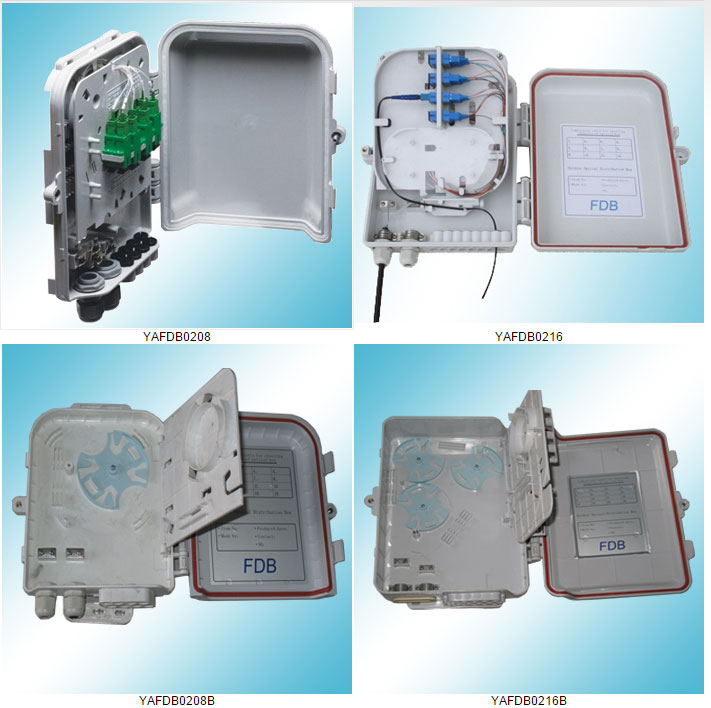

| YAFDB-0208 |
181X45X207mm |
8 ports & splice |
Pole/Wall |
| YAFDB-0216 |
220x80x300mm |
16 ports & splice |
Pole/Wall |
| YAFDB-0208B | 205X55X215mm | 8 ports & splice | Pole/Wall |
| YAFDB-0216B | 268X90X320mm | 16 ports & splice | Pole/Wall |
