Applicable : Applicable in the straight through or branch connection of indoor optical cable Available for the distribution and terminal connection of various kinds of optical fiber system Fit for wall mounted

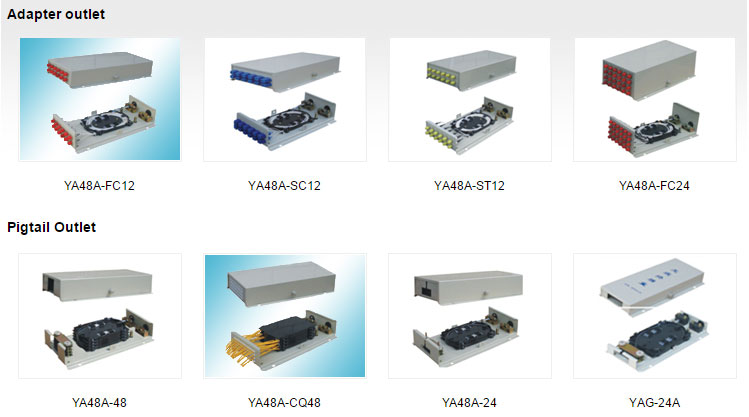

| Type | Size(mm) | Max capacity(core) | Remark |
| YA48A-FC12 | 330x183x70 | 12 | The body is made of cold rolled steel sheet,with electrostatic spraying,12 outlets for adaptors |
| YA48A-SC12 | 330x183x70 | 12 | |
| YA48A-ST12 | 330x183x70 | 12 | |
| YA48A-FC24 | 330x183x100 | 24 | |
| YA48A-CQ48 | 330x183x70 | 48 | The body is made of cold rolled steel sheet with electrostatic spraying,fiber pigtail outlet |
| YAG-24A | 330x120x46 | 24 |
| Type | Net size(mm) | Net weight(kg) | Packing size(mm) | Packing weight (kg) | No./cartonpcs |
| YA48A | 360X193X85mm | 1.85 | 430x370x470mm | 20.0 | 10 |
| YA48A-FC24 | 360X193X115mm | 2.05 | 430x370x470mm | 18.0 | 8 |
| YAG | 320x150x60mm | 1.05 | 630x330x340mm | 20.0 | 20 |
