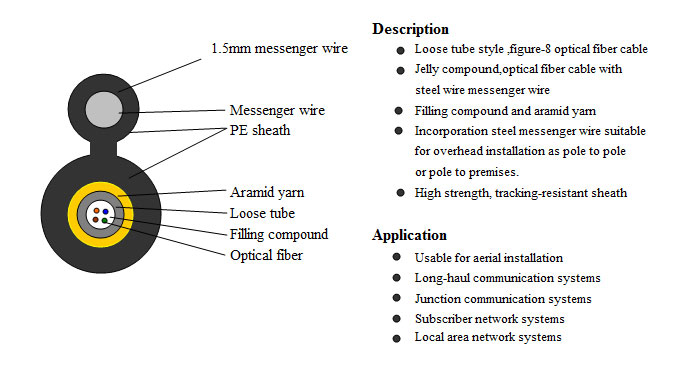

Note: 1.The colour arrangement of optical fiber is specified in the fiber colour code 2.S: short term; L: long term; L.T: loose tube 3.Crush load: N/100mm; D: cable diameter 4.GY: outdoor cable;T: jelly compound; C8: Figure 8 cable;Y: PE outer sheath(A: aluminum +PE sheath; S: Steel tape+PE)
Mechanical & Environmental characteristics
| ITEM | CHARACTERISTICS | ||||||||||||
| Operationt emperature | -20℃~+60℃ | ||||||||||||
| Storaget emperature | -40℃~+60℃ | ||||||||||||
| Sheath Material | P:PE; L:LSZH; or other | ||||||||||||
|
Part Number |
Fiber Count |
Outside Diameter (mm) |
Loose Tube Diameter (mm) |
Cable Weight (kg/km) |
Tensile Load | Crush Load | Bend Radius | |||
|
S (N) |
L (N) |
S (N) |
L (N) |
S (mm) |
L (mm) |
|||||
| GYXTC8Y04XXP-BK | 4 | 6.0/12.0 | 2.3 | 48.0 | 2000 | 1000 | 1000 | 300 | 20D | 10D |
| GYXTC8Y06XXP-BK | 6 | 6.0/12.0 | 2.3 | 48.0 | 2000 | 1000 | 1000 | 300 | 20D | 10D |
| GYXTC8Y08XXP-BK | 8 | 6.0/12.0 | 2.3 | 48.0 | 2000 | 1000 | 1000 | 300 | 20D | 10D |
| GYXTC8Y12XXP-BK | 12 | 6.0/12.0 | 2.3 | 48.0 | 2000 | 1000 | 1000 | 300 | 20D | 10D |
|
BL- Blue
|
BR- Brown
|
RE- Red
|
PU- Purple
|
||||||||||
|
OR- Orange
|
GY- Grey
|
BK- Black
|
PI- Pink
|
||||||||||
|
GR- Green
|
WH- White
|
YE- Yellow
|
AQ- Aqua
|
||||||||||
