Applicable in the branch connection of fiber termination,working as distribution box 19’’standard structure,rack mounted available for the installation of FC,SC,ST,LC adaptors

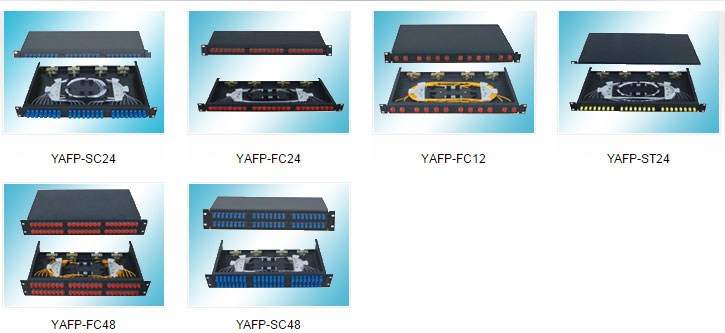

| Type | Dimension(mm) | Max capacity cores | Remark |
| YAFP-SC12 | 480*250*1U | 12 |
The body is made of cold rolled steel sheet,with electrostatic spraying.We can install adaptors for you,available for FC,ST,SC,LC .
|
| YAFP-SC24 | 480*250*1U | 24 | |
| YAFP-SC48 | 480*250*2U | 48 | |
| YAFP-FC12 | 480*250*1U | 12 | |
| YAFP-FC24 | 480*250*1U | 24 | |
| YAFP-FC48 | 480*250*2U | 48 | |
| YAFP-ST12 | 480*250*1U | 24 | |
| YAFP-ST24 | 480*250*1U | 24 |
Packing information
| Type | Net size | Net weight | Packing size | Packing weight | No./carton |
| YAFP-SC12 |
465*285*75mm
|
2.6kg
|
485*425*305
|
14.2kg
|
5 pcs
|
| YAFP-SC24 |
465*285*75mm
|
2.6kg
|
485*425*305
|
14.2kg
|
|
| YAFP-SC48 |
465*285*125mm
|
3.8kg |
675*485*305
|
21.0kg
|
|
| YAFP-FC12 |
465*285*75mm
|
2.6kg |
485*425*305
|
14.2kg
|
|
| YAFP-FC24 |
465*285*75mm
|
2.6kg |
485*425*305
|
14.2kg
|
|
| YAFP-FC48 |
465*285*125mm
|
3.8kg |
675*485*305
|
21.0kg | |
| YAFP-ST12 |
465*285*75mm
|
2.6kg |
485*425*305
|
14.2kg | |
